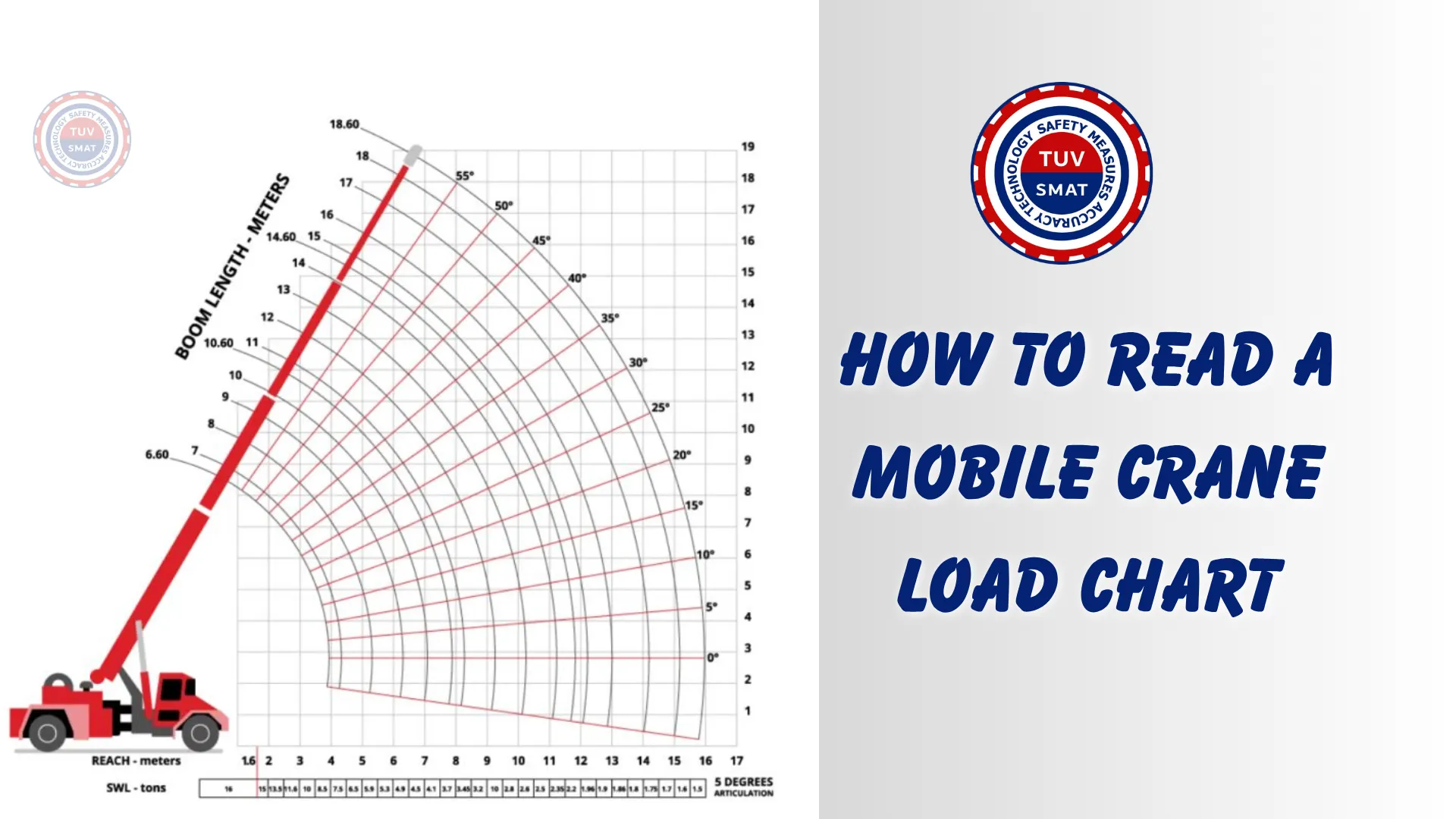

How to Read a Mobile Crane Load Chart: A Step-by-Step Guide

Every successful construction project in Saudi Arabia relies on heavy lifting, but the line between a flawless lift and a catastrophic failure is incredibly thin. That line is defined by the Mobile Crane Load Chart.

Whether you are managing a site in the bustling industrial zones of Jubail or overseeing infrastructure development in Riyadh, understanding the exact capacity of your lifting equipment is a non-negotiable safety requirement. At SMAT Inspection & Certification Services, we regularly train operators and inspect cranes, and we know that misreading the load chart is one of the most common and dangerous errors on a site.

Here is your step-by-step guide to correctly reading a mobile crane load chart and calculating your safe working load.

The Golden Rule: Gross Capacity vs. Net Capacity

Before looking at the chart, you must understand the difference between gross and net capacity. The numbers printed on the manufacturer’s load chart represent the Gross Capacity the absolute maximum weight the crane’s boom can support at a specific angle and radius.

However, the crane must also lift the rigging equipment itself. To find the true weight you can safely lift (the Net Capacity), you must calculate your deductions.

Common Deductions to Subtract from Gross Capacity:

The Formula: > Gross Capacity (from chart) – Total Deductions = Net Capacity (what you can actually lift)

Key Components of a Load Chart

To read a load chart correctly, you must understand five primary variables:

1. Boom Length (طول الذراع)

This is the total length of the main boom when extended. As the boom extends further, the crane’s structural capacity generally decreases due to the increased leverage the load has over the base.

2. Load Radius (نصف القطر)

The load radius is the horizontal distance from the center of the crane’s rotation (the slewing ring) to the center of the load.

• Rule of Thumb: The further the load is from the crane, the less weight the crane can safely lift.

3. Boom Angle (زاوية الذراع)

Measured in degrees, the boom angle indicates the elevation of the boom. A higher angle (closer to vertical) usually allows for a higher lifting capacity because it minimizes the load radius.

4. Rated Capacity (الحمل المصنف)

The intersection of your boom length and load radius on the chart gives you the Gross Capacity. Note that you must subtract the weight of “deductions” (the hook block, slings, and rigging gear) to find your Net Capacity.

5. Outrigger Configuration

Most charts have separate tables for “On Outriggers” (fully extended) versus “On Rubber” (tires). In Saudi construction, ensuring outriggers are fully deployed on stable, inspected ground is vital for following the chart accurately.

Step-by-Step: Reading the Load Chart

Follow these steps to accurately determine your safe lifting capacity:

Step 1: Identify Your Configuration

Cranes have different load charts for different setups. Ensure you are looking at the correct page for your specific scenario:

• Are you on fully extended outriggers, half-extended outriggers, or on tires (on rubber)?
• Are you lifting over the rear, the side, or using a 360-degree rotation?
• Is the counterweight configuration correct?

Step 2: Determine the Load Radius

Measure the exact horizontal distance from the center of the crane’s rotation (the slew ring) to the center of gravity of the load. Never guess this distance. If your measured radius falls between two numbers on the chart, always round up to the next furthest distance for safety.

Step 3: Check the Boom Length

Determine how far the boom needs to be extended to reach the load and lift it to the required height. Similar to the radius, if your exact boom length isn’t listed, always use the next longest boom length on the chart.

Step 4: Find the Intersecting Gross Capacity

Look down the column for your Boom Length and across the row for your Load Radius. The number where these two intersect is your Gross Capacity.

Load Radius (m)	Boom Length 15m (Capacity in kg)	Boom Length 20m (Capacity in kg)
5.0	12,000	10,500
6.0	9,500	8,200
7.0	7,800	6,500

Example: Using the table above, with a 20m boom length and a 6.0m load radius, your Gross Capacity is 8,200 kg.

Step 5: Subtract Your Deductions

If your Gross Capacity is 8,200 kg, but your hook block, stowed jib, and rigging gear weigh a combined 800 kg, your Net Capacity is 7,400 kg. If your actual load weighs 7,500 kg, the lift is unsafe and must be reconfigured.

Common Mistakes When Interpreting Load Charts

Even experienced operators can make errors. Here are the most common pitfalls we see during our SMAT Training & Certification sessions:

• Ignoring Wind Speed: Load charts are typically calculated for low-wind conditions. In the open deserts of the Eastern Province, high winds can significantly reduce safe lifting capacity.
• “Eye-balling” the Radius: Guessing the distance to the load instead of using a rangefinder or the crane’s Load Moment Indicator (LMI).
• Failing to Deduct Rigging Weight: Forgetting that a 2-ton hook block is part of the load, not the crane.

What is a Mobile Crane Load Chart?

A mobile crane load chart is a manufacturer-provided manual or table that specifies the crane’s maximum lifting capacity under various configurations. Because a crane’s capacity changes based on how much the boom is extended and at what angle it is positioned, the load chart serves as the “operating envelope” for the machine.

Why It’s Critical for Your Site

Operating a crane without referencing the load chart is like driving in the dark without headlights. In the extreme heat and variable wind conditions of the GCC, even minor miscalculations in load weight or radius can lead to:

• Structural Failure: Snapping the boom or damaging the crane’s internal hydraulics.
• Tipping: Overbalancing the crane, leading to catastrophic site accidents.
• Regulatory Fines: Non-compliance with Saudi labor laws and third-party inspection requirements.
